Garage Door Weather Stripping: When to Replace It and How to Do It Right

The Daylight Test: Start Here

The Four Seals: What Each One Does and Where It Lives

Most articles treat garage door weather stripping as a single item. It is actually four distinct components, each in a different location, each with a different failure mode, and each requiring a different replacement product.

The bottom seal fails most often because it is the only seal that contacts the ground on every single cycle. It gets compressed, scraped, frozen to the floor in winter, torn by ice, and degraded by UV. At 4 cycles per day, that is 1,460 contact events per year.

The side and top seals fail more slowly because they are not subject to ground contact, but UV exposure and temperature cycling make them brittle over 5 to 7 years.

Panel seals (the interlocking rubber sections between door panels) last the longest and are generally not replaced independently. They are part of the door panel itself.

Signs Each Seal Has Failed

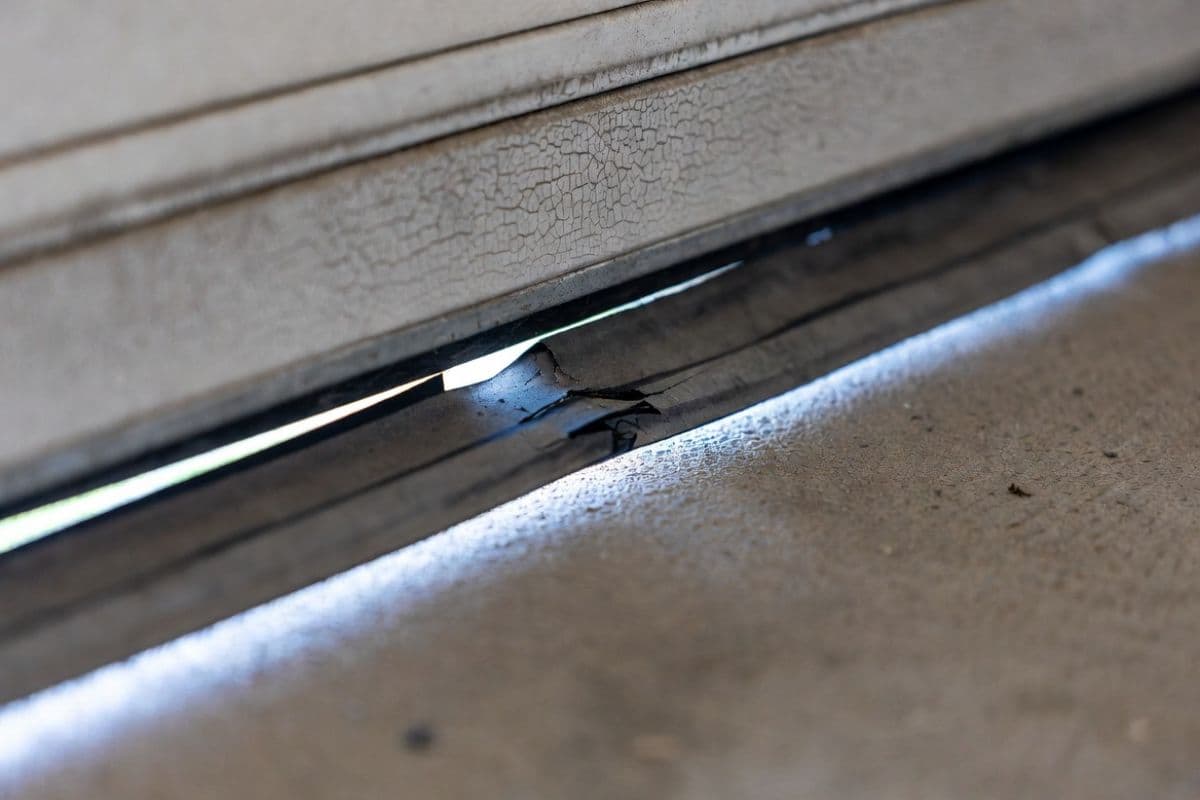

Bottom Seal Failure Signs

• Visible daylight under the door when closed
• Water pooling inside after rain or snow melt
• Insects, rodents, or debris inside a closed garage
• The seal looks flattened, cracked, torn, or missing sections
• A chunk of rubber found on the garage floor (a piece tore off during opening)
• The door froze to the floor overnight and the seal tore when the opener pulled it up

Side and Top Seal Failure Signs

• Daylight visible along the sides or top of the closed door
• Drafts felt along the door frame edges (run your hand slowly along the frame with the door closed)
• The rubber or vinyl is visibly cracked, brittle, or pulling away from the frame
• Water staining on the interior door frame after heavy rain
• The seal no longer springs back when you compress it (has permanently flattened)

The 5-Year Rule

Regardless of visible symptoms, replace all weather stripping when the bottom seal reaches 5 years old. All four seals were likely installed at the same time and have experienced the same UV and temperature exposure. Replacing the bottom seal alone when the perimeter seals are also aging just delays the next replacement by one or two years. Doing all four at once takes 90 minutes total and costs $50 to $120 in materials. For a full seasonal inspection schedule that includes weather seal checks, see the garage door maintenance checklist.

Choosing the Right Bottom Seal

The bottom seal is the most critical and the most confusing to replace because there are multiple profile types and they are not interchangeable. Buying the wrong profile means the seal will not fit the retainer on the bottom of your door.

How to identify your profile: Look at the aluminum retainer on the bottom of the door. The retainer has a channel or slot that the seal slides into. Match the seal to the channel shape:

If you cannot identify the profile: Slide the old seal out of the retainer (it slides from one end) and take it to the hardware store for matching. Alternatively, take a photo of the bottom of the door with the retainer visible and use it to search the manufacturer's replacement parts.

Material choice:

• EPDM rubber: Best overall. Remains flexible in cold temperatures down to -40 degrees Fahrenheit, UV resistant, longest lifespan. Costs $5 to $10 more than vinyl but lasts significantly longer.
• Vinyl (PVC): Less expensive. Adequate in mild climates. Becomes brittle in sustained cold below 20 degrees Fahrenheit. Good choice if budget is the primary consideration and you are in a warm climate.
• Silicone: Premium option. Excellent UV resistance and temperature range. Costs $10 to $15 more than EPDM. Worthwhile for south-facing doors with heavy direct sun exposure.

How to Replace the Bottom Seal

Tools needed: Flathead screwdriver, utility knife, measuring tape, silicone spray

Time: 20 to 30 minutes

Cost: $20 to $45 for the seal

1. Disconnect the opener by pulling the red emergency release cord so the door can be moved manually.
2. Open the door to a comfortable working height (about waist level) and lock it in place by clamping locking pliers on the track above a roller.
3. Slide the old seal out of the aluminum retainer from one end. It slides horizontally. If it is stuck, spray a small amount of silicone lubricant at the entry point and work it free. Do not pry or force. You may need the retainer intact for the new seal.
4. Measure the door width precisely. Most residential doors are 8, 9, 10, 16, or 18 feet. Buy a seal that is at least 2 inches longer than the door width so you can trim to exact fit.
5. Slide the new seal into the retainer from one end, pushing it along until it extends past both sides of the door.
6. With the door closed against the floor, trim the seal with a utility knife so it extends approximately 1/2 inch past each side of the door. This slight overhang ensures full contact at the corners.
7. Apply a thin coat of silicone spray to the bottom of the seal. This prevents the seal from bonding to wet concrete or ice overnight and tearing when the opener pulls the door up in the morning.
8. Reconnect the opener and test. The door should close fully with the seal compressing evenly against the floor.

How to Replace Side and Top Seals (Stop Molding)

The perimeter seals run along the door frame, up both sides and across the top. They are typically a vinyl or rubber strip stapled or nailed to a wood stop molding, or in newer construction, a self-adhesive foam or rubber strip pressed against the frame.

Tools needed: Pry bar or flathead screwdriver, hammer, staple gun or nails, utility knife, measuring tape

Time: 30 to 45 minutes for all three runs

Cost: $15 to $30 per run, or $40 to $80 for a complete perimeter kit

1. With the door closed, examine the existing perimeter seal. If it is stapled or nailed wood stop molding with a rubber flange, it must be removed and replaced as a unit. If it is a self-adhesive foam or rubber strip, it can be peeled off and replaced without removing the molding.
2. Wood stop molding type: Pry the molding away from the frame carefully, starting at the bottom. Remove all staples or nails. Take a section to the hardware store to match the profile.
3. Measure each run (left side, right side, and top). Add 2 inches to each measurement. Cut the new molding to length with a utility knife or saw.
4. With the door closed, press the new molding against the frame so the rubber flange contacts the door face firmly. Secure with nails or staples every 6 inches. The rubber flange should compress slightly against the door surface. Enough to create a seal but not so much that it resists door movement.
5. Test by closing the door and running your hand along the perimeter. No airflow should be detectable.
6. Self-adhesive type: Clean the frame surface with rubbing alcohol and allow to dry completely. Peel and press the new adhesive seal into position. Press firmly along its full length. Allow 24 hours before testing in wet or cold conditions.

What Weather Stripping Replacement Actually Costs

When professional installation is worth it:

• The aluminum retainer on the bottom of the door is damaged or bent. Replacing a damaged retainer requires drilling out rivets or removing screws, which is genuinely difficult without experience.
• The wood stop molding around the frame is rotted. Rotted molding needs to be replaced, not just re-sealed, and is attached to the structural frame.
• The door itself is warped or out of square. No amount of new weather stripping seals a door that does not sit flat in its frame. If the door is warping due to failing springs, see our garage door spring replacement guide.

Seasonal Maintenance That Extends Seal Life

Spring: Inspect all four seals after winter. Winter is the hardest season on weather stripping. Repeated freeze-thaw cycles, ice bonding, and cold-induced brittleness cause more damage than the rest of the year combined. Replace anything that cracked or tore over winter before summer UV exposure makes it worse.

Summer: Apply a UV protectant spray (303 Aerospace Protectant or similar) to rubber seals on south or west-facing doors. Direct sun degrades rubber faster than any other factor. A UV spray applied in May extends seal life by one to two years on high-sun exposures.

Fall: Apply silicone spray to the bottom seal before the first freeze. This is the single most effective way to prevent the seal from bonding to ice on the concrete floor overnight and tearing when the opener pulls the door up on a cold morning. Takes 30 seconds. See our garage door winterization guide for the full pre-winter seal checklist.

Year-round: Never use petroleum-based lubricants (WD-40, motor oil) on rubber seals. Petroleum degrades rubber over time, accelerating cracking and brittleness. Use only silicone-based products on any rubber component. According to the U.S. Department of Energy, proper air sealing is one of the most cost-effective ways to reduce energy loss in any home.

Frequently Asked Questions

How do I know if my garage door weather stripping needs replacing?

The clearest signs are visible daylight around the closed door, drafts you can feel with your hand along the door frame, water pooling inside after rain, pests or insects getting in despite a closed door, and visible cracking, brittleness, or missing sections in the rubber or vinyl material. The bottom seal should also be replaced if it froze to the floor and tore during a winter opening. A damaged seal does not recover after tearing.

How long does garage door weather stripping last?

Bottom seals last 3 to 5 years at average use (4 cycles per day). Side and top seals last 5 to 7 years. Quality EPDM rubber lasts significantly longer than vinyl in cold climates. Properly installed weather stripping with regular silicone spray maintenance and UV protection can reach the higher end of these ranges. Poorly installed seals, or seals on south-facing doors without UV protection, can fail in 2 to 3 years.

Can I replace garage door weather stripping myself?

Yes, for most homeowners. Bottom seal replacement requires sliding the old seal out and the new one in. No tools beyond a utility knife and tape measure are needed. Side and top seal replacement requires a staple gun or hammer and nails for wood stop molding types. The only situations that genuinely require a professional are a damaged or bent bottom retainer, rotted frame molding, or a door that is warped out of square.

What is the best material for garage door weather stripping?

EPDM rubber is the best overall choice. It remains flexible in temperatures down to -40 degrees Fahrenheit, resists UV degradation effectively, and outlasts vinyl by several years in cold climates. Vinyl (PVC) is a reasonable budget option in mild climates but becomes brittle in sustained cold below 20 degrees. Silicone is the premium option for high-sun exposures. It handles UV better than EPDM and costs $10 to $15 more per replacement.

Why does my garage door keep freezing to the floor?

The bottom seal is bonding to water on the concrete floor before it freezes overnight. The fix is simple: apply silicone spray to the bottom of the seal every fall. Silicone prevents rubber from bonding to ice. If the door has already frozen, do not press the opener button. That burns out the motor. Disconnect the opener, chip the ice away from outside, and lift the door manually. See our garage door won't open guide for the full frozen door procedure.

How much does it cost to replace garage door weather stripping?

DIY replacement of the bottom seal costs $20 to $45 in materials. A full perimeter replacement (all four seal positions) costs $50 to $120 in materials and takes 60 to 90 minutes. Professional installation of the full perimeter runs $150 to $350 depending on door size and seal condition. The bottom seal is by far the most cost-effective DIY maintenance task on any garage door.

Should I replace all the weather stripping at once or just the failed piece?

Replace all four seals at the same time when the bottom seal reaches 5 years old. All seals were installed simultaneously and have experienced the same degradation from UV and temperature. Replacing only the failed piece leaves aging seals in place that will require replacement within one to two years anyway. The incremental labor cost of doing all four at once is minimal and the material cost difference is $30 to $50.

Does garage door weather stripping affect energy bills?

Yes, meaningfully for attached garages. An uninsulated or poorly sealed attached garage acts as a thermal buffer for adjacent rooms. Air infiltration through failed weather stripping is a direct energy loss pathway. According to the Department of Energy, properly sealing and insulating the boundary between an attached garage and living space can reduce energy loss through that wall by 60 to 70 percent. For a detached garage, the energy impact is limited to the garage itself. It is significant if you heat the space and minimal if you do not. For more on insulation and sealing working together, see our garage insulation guide.
